Strategic Planning with Aggregate Data

A sensor is a device that measures some kind of input from the physical world. On complicated technical systems such as vessels, there is an enormous amount of different sensors. The number of sensors will surely grow as the size and cost of sensors continuously decrease. A person technically trained is able to gain some information from a single sensor reading, but the information is much more useful when the data from multiple sensors and sources is combined and aggregated at a higher level. At a higher level the whole vessel can be seen as a moving sensor that is collecting data from environmental conditions as well as the performance of the vessel.

2014.05.05 - Strategic Planning with Aggregate Data Figure 1

Similarly as the information received from a single sensor is limited, it is inadequate to interpret the information from only a single vessel. By combining the information from several vessels, it is possible to form a higher level view of the entire fleet and compare individual vessel performance by creating benchmarks and baselines. By comparing a vessel performance to another vessel, or even hundreds of other vessels, it is much easier to evaluate if individual vessel performance is up to the mark or not. Aggregating information from several vessels can bring insight about how the environmental conditions affecting vessel fuel consumption differ between sea areas.

When planning a budget, vessel operators need to estimate the fuel costs for a selected route. Fuel costs depend not just on the voyage distance, route and the schedule, but also on the environmental conditions the vessel is going to face on the voyage. An interesting measure when estimating cost of a specific route is considering the average sea margin that will be experienced in that sea area. Sea margin refers to the energy used by the vessel to overcome the environmental and sea conditions. In ideal conditions vessel sea margin would be zero.

2014.05.05 - Strategic Planning with Aggregate Data Figure 3

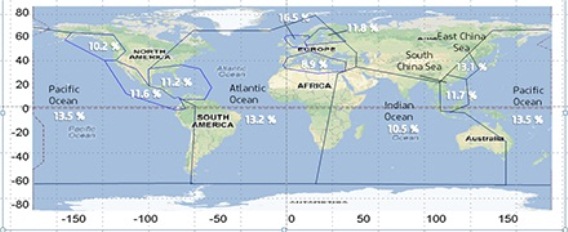

Figure of median sea margin in different sea areas based on Eniram benchmark data

Average sea margins are bigger on the Atlantic and the Pacific Ocean. This is expected as the weather conditions and sea state are generally worse when compared to areas closer to the coast. Interestingly in the Mediterranean Sea, the sea margin is the lowest of all the defined sea areas. This is understandable as it’s a smaller sea area, where the waves are typically smaller and thus have less impact on a vessel’s energy consumption. In the Baltic Sea shallow water increases the average sea margin as vessel squatting has a big impact thus the average sea margin is larger.

The average sea margin does not of course tell the whole truth about the environmental conditions in that area, the environmental conditions vary seasonally and on some sea areas the conditions are always harsher. When we look at the sea margin distributions for the Mediterranean Sea and Pacific Ocean, we can see that in the Mediterranean Sea, the sea margin on the average is more likely to be less than 10%. The probability of the sea margin being over 20% is lesser than on the average. On the other hand in the Pacific Ocean it is the other way around. There the sea margin is likely to be higher than the average and sea margins of over 20% are more probable.  Showing the seasonal variation in the sea margin distributions would give even better insight of the changes in operating cost between different areas. When planning high level fleet deployment, the differences in energy consumptions in different areas due to sea margins should therefore be taken into account. For example operating in Mediterranean or in the Caribbean has over 2 % difference in propulsion energy usage of the vessel. This is already a significant difference on fuel bill.

2014.05.05 - Strategic Planning with Aggregate Data Figure 2

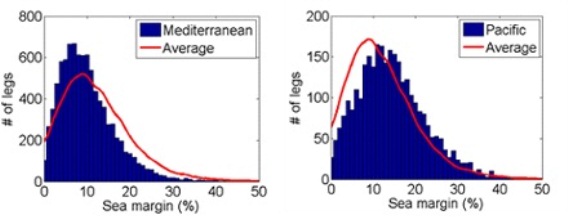

On the left: Average sea margin distribution and distribution in the Mediterranean Sea. On the right: Average sea margin distribution and the distribution in the Pacific Ocean.

The average sea margin in a certain sea area is certainly not the only way the aggregated data could be used. The information can be used to simulate the fuel consumption of an individual vessel on a certain route, giving even more accurate information for voyage planning. This kind of simulation would bring a new level of accuracy to fuel budgets. Although an individual measurement is difficult to interpret, aggregating data brings valuable insight to see the larger picture. High level of aggregated data can be of great help in making strategic decisions on how to operate the vessels better.

 ABOUT THE AUTHOR

Author - Pekka Autere, Eniram Pekka Autere is part of Eniram’s analytics team and has a broad experience in converting data into information and strategic guidance using mathematical and statistical modeling in different fields of application. He is responsible for developing automatic reporting and data analysis with our customers. He is a Master of Science in Automation and System Technology and System Analysis and a Master of Social Sciences in Economics.

ABOUT ENIRAM

Established in 2005, Eniram provides the maritime industry with energy management technology to reduce fuel consumption and emissions. Created by experienced seafarers and technologists, Eniram’s solutions range from single onboard applications to comprehensive fleet analysis. Eniram is headquartered in Helsinki, Finland and has subsidiaries in the UK, the USA, Germany and Singapore.  www.eniram.fi
